Convenient and efficient tire handler machinery
Product Details
The BROBOT tire handler tool is a breakthrough innovation that brings great convenience and benefits to the mining industry. Whether it is excavation machinery or construction equipment, it can be easily mounted and rotated with the BROBOT tire handling tool. Not only that, but it is also able to cope with high weight tires, making the work in the mining industry more efficient and smooth.
BROBOT tire handler tools are designed with the needs and safety of the operator in mind. It features an integrated console that allows the operator to rotate and maneuver the tires in a safe environment and rotate the body at a 40° angle for greater flexibility and control. This design makes the operation more comfortable and safe, reducing the potential risk of work-related injuries.
In addition, BROBOT tire handler tools also provide a number of optional functions to meet the individual needs of customers. This includes a lateral movement function that allows lateral adjustment on the loader or forklift as required. In addition, quick-coupling accessories are available as an option to make installing and changing tires easier and more efficient. As an additional function, it can also realize the assembly of tires and rims, which greatly improves work efficiency and convenience.
In conclusion, BROBOT tire handler tool is a powerful, safe and reliable product that provides a comprehensive solution for tire installation and operation in the mining industry. Whether in the process of excavation, transportation or construction, BROBOT tire handler tools will become your right-hand assistant, helping you improve work efficiency, reduce costs and achieve greater success.
Product advantages
1. The new wheel structure enhances the ability to handle the flange ring and grip the tire
2. The continuous rotation structure enables the operator to manage the tire rotation 360 degrees
3. Pads are configured according to different products. 600mm diameter, 700mm diameter, 900mm diameter, 1000mm diameter, 1200mm diameter
4. Backup protection, hydraulic operation from cab to open or close position, for adding (optional) standard manual control
5. BROBOT products are equipped with a side shift function as standard, with a lateral movement distance of 200mm, which is beneficial for the operator to quickly grab the tire. Main body configuration 360 degree rotation (optional)
Product Features
Standard features:
1. Capacity up to 36000lb (16329.3kg)
2. Hydraulic back protection
3. Rim Flange Hardware Handling Pad
4. Can be installed on forklift or loader
Optional features:
1. Specific models are available in long arm or broken arm length
2. Lateral shift capability
3. Video surveillance system
Flow and pressure requirements
|
Model |
Pressure value（Bar） |
Hydraulic Flow value（L/min） |
|
|
Maximum |
Minimum |
Maximum |
|
|
30C/90C |
160 |
5 |
60 |
|
110C/160C |
180 |
20 |
80 |
Product parameter
|
Type |
Carrying capacity(kg) |
Body rotate Pdeg. |
Pad Rotate adeg. |
A（mm） |
B（mm） |
W（mm） |
ISO(grade) |
Horizontal center of gravity HCG（mm） |
Effective Thickness V |
Weight (kg) |
Forklift Truck |
|
20C-TTC-C110 |
2000 |
±20° |
100° |
600-2450 |
1350 |
2730 |
IV |
500 |
360 |
1460 |
5 |
|
20C-TTC-C110RN |
2000 |
360 |
100° |
600-2450 |
1350 |
2730 |
IV |
500 |
360 |
1460 |
5 |
|
30C-TTC-C115 |
3000 |
±20° |
100° |
786-2920 |
2400 |
3200 |
V |
737 |
400 |
2000 |
10 |
|
30C-TTC-C115RN |
3000 |
360 |
100° |
786-2920 |
2400 |
3200 |
V |
737 |
400 |
2000 |
10 |
|
35C-TTC-C125 |
3500 |
±20° |
100° |
1100-3500 |
2400 |
3800 |
V |
800 |
400 |
2050 |
12 |
|
50C-TTC-N135 |
5000 |
±20° |
100° |
1100-4000 |
2667 |
4300 |
N |
860 |
600 |
2200 |
15 |
|
50C-TTC-N135NR |
5000 |
±20° |
100° |
1100-4000 |
2667 |
4300 |
N |
860 |
600 |
2250 |
15 |
|
70C-TTC-N160 |
7000 |
±20° |
100° |
1270-4200 |
2895 |
4500 |
N |
900 |
650 |
3700 |
16 |
|
90C-TTC-N167 |
9000 |
±20° |
100° |
1270-4200 |
2885 |
4500 |
N |
900 |
650 |
4763 |
20 |
|
110C-TTC-N174 |
11000 |
±20° |
100° |
1220-4160 |
3327 |
4400 |
N |
1120 |
650 |
6146 |
25 |
|
120C-TTC-N416 |
11000 |
±20° |
100° |
1220-4160 |
3327 |
4400 |
N |
1120 |
650 |
6282 |
25 |
|
160C-TTC-N175 |
16000 |
±20° |
100° |
1220-4160 |
3073 |
4400 |
N |
1120 |
650 |
6800 |
32 |

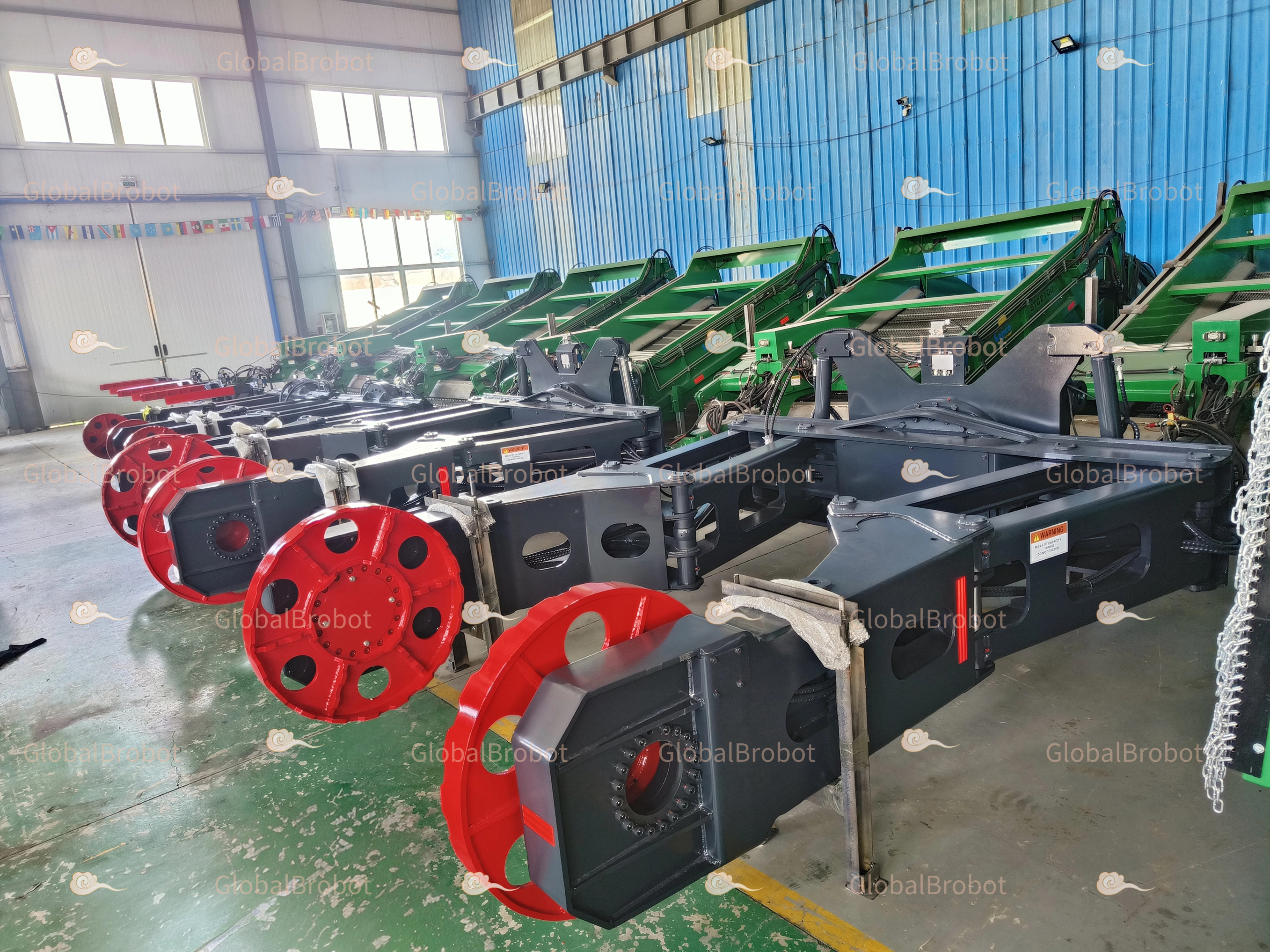

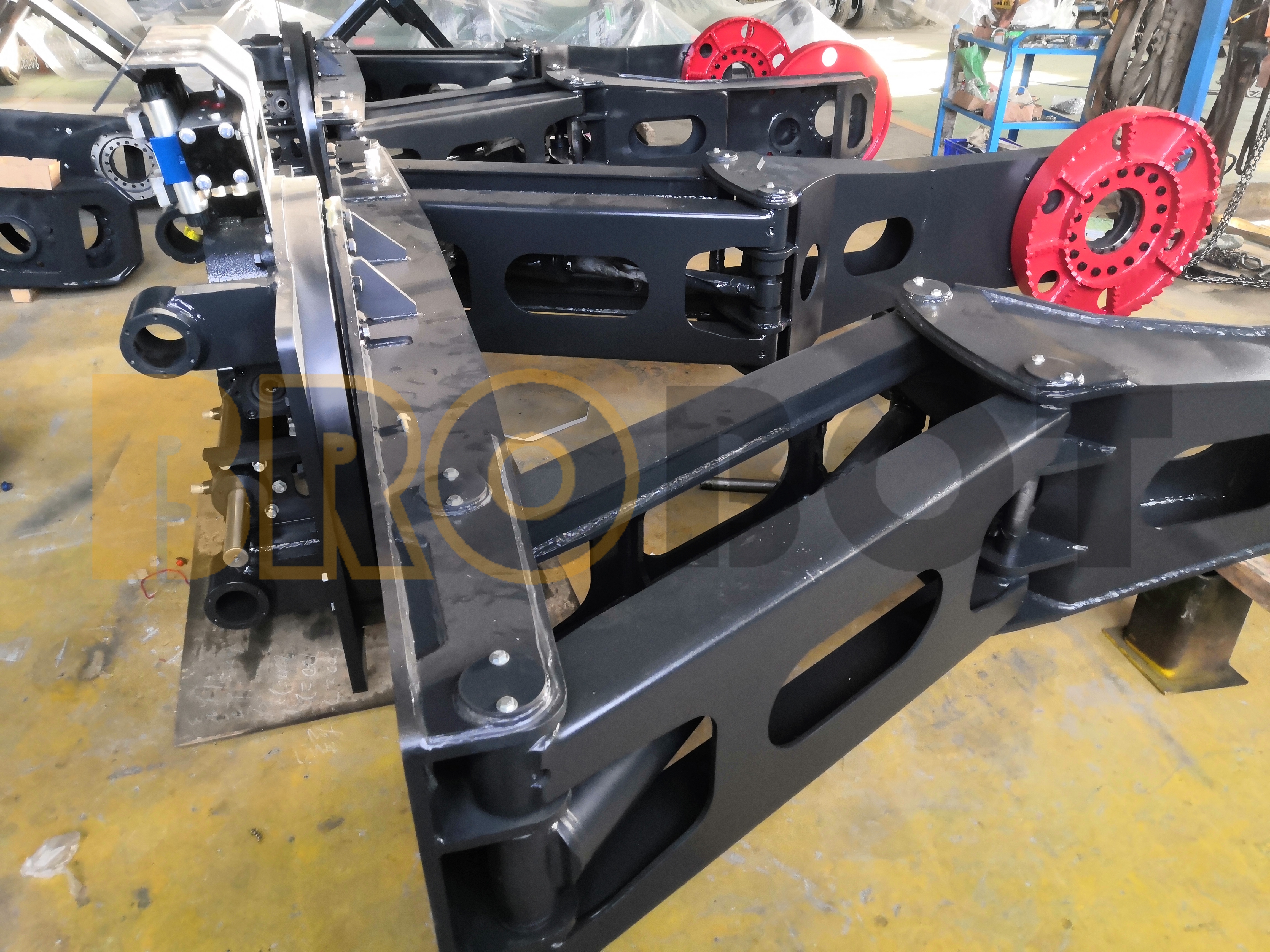

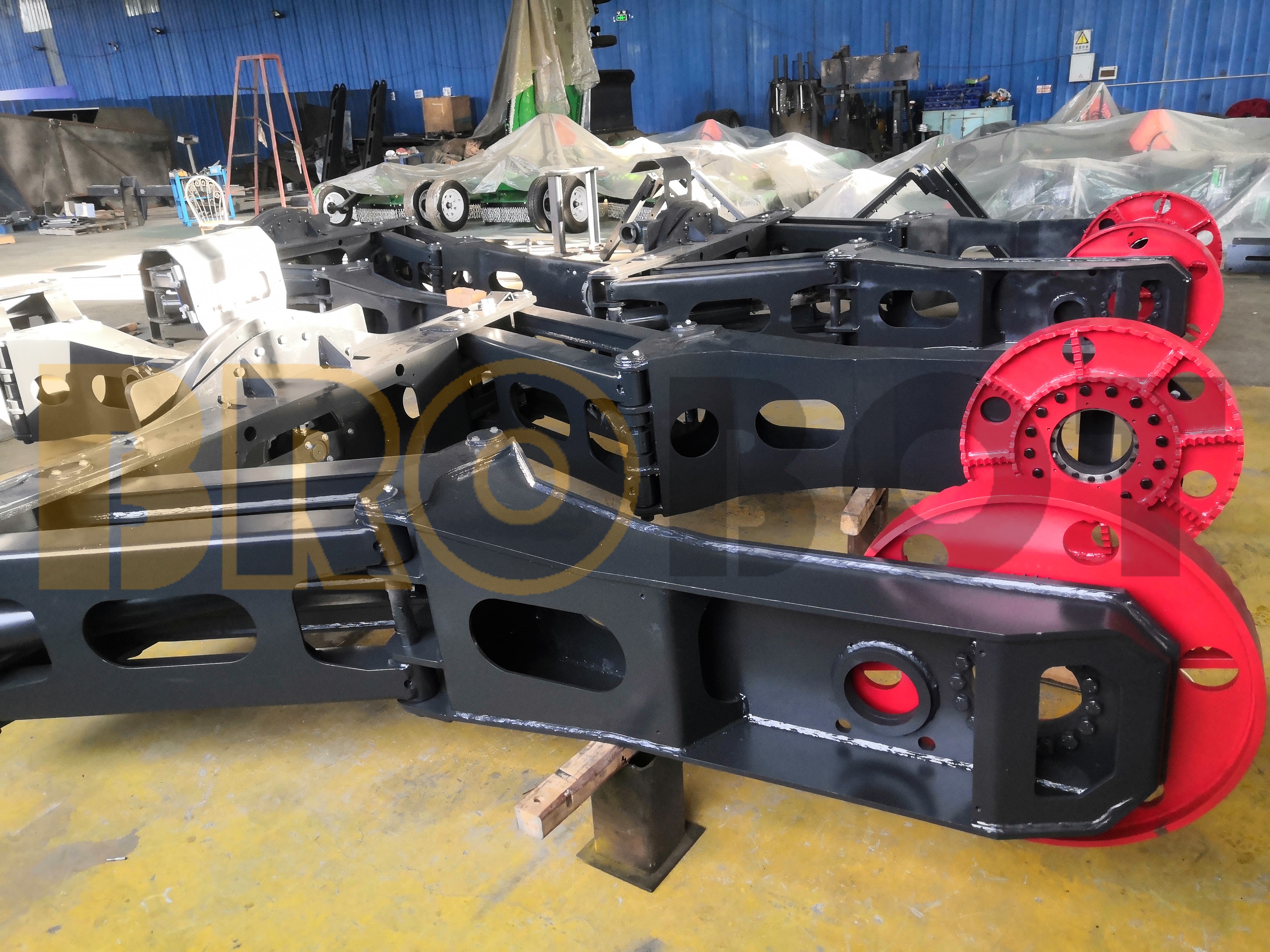

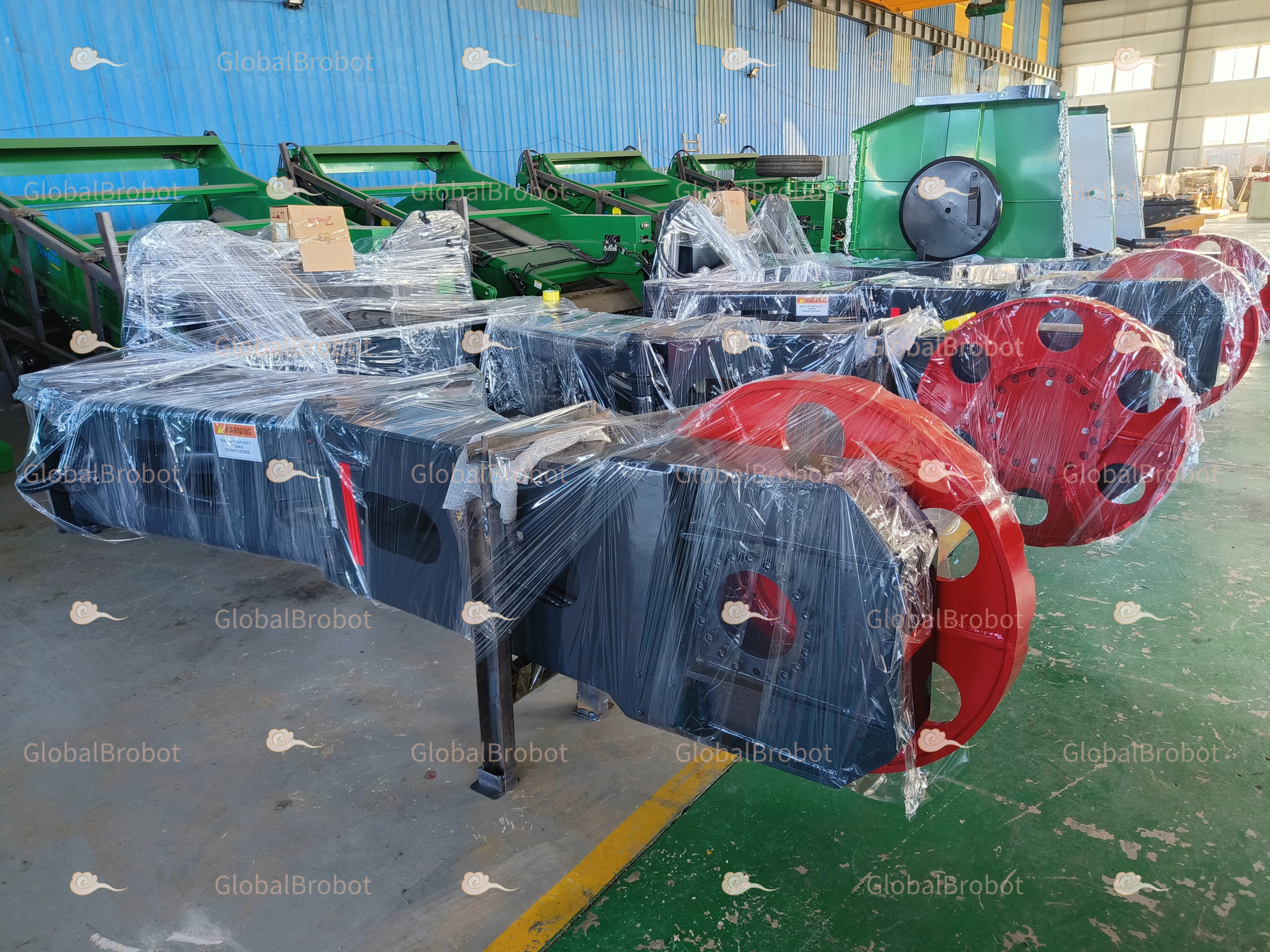

Product display
FAQ
Q:What is BROBOT tire handler tool?
A:The BROBOT tire handler tool is an innovative product specially designed for the mining industry. It can be mounted on a loader or forklift for mounting and rotating large tires and construction equipment.
Q:How many tires can the BROBOT tire handler tool carry?
A:BROBOT tire handler tools can carry up to 36,000 lbs (16,329.3 kg) of tires, suitable for installation and handling of various heavy tires.
Q: What are the features of BROBOT tire handler tools?
A:The BROBOT tire handler tool features side shifting, an option for quick-connect attachments, and comes complete with tire and rim assemblies. Additionally, the tool features a 40° body rotation angle, giving the operator greater flexibility and control in a safe environment.
Q:Which industries are BROBOT tire handler tools suitable for?
A:BROBOT tire handler tools are specially designed for the mining industry and are suitable for maintenance and tire replacement of various mining equipment.
Q:How to install and use BROBOT tire handler tool?
A:BROBOT tire handler tools can be installed on loaders or forklifts, and can be installed and used under the guidance of the operation manual. The operation manual will provide detailed installation steps and usage instructions to ensure safe and effective use of the tool.
